seismic spring
hange home라인Product라인Earthquake-resistant products 라인

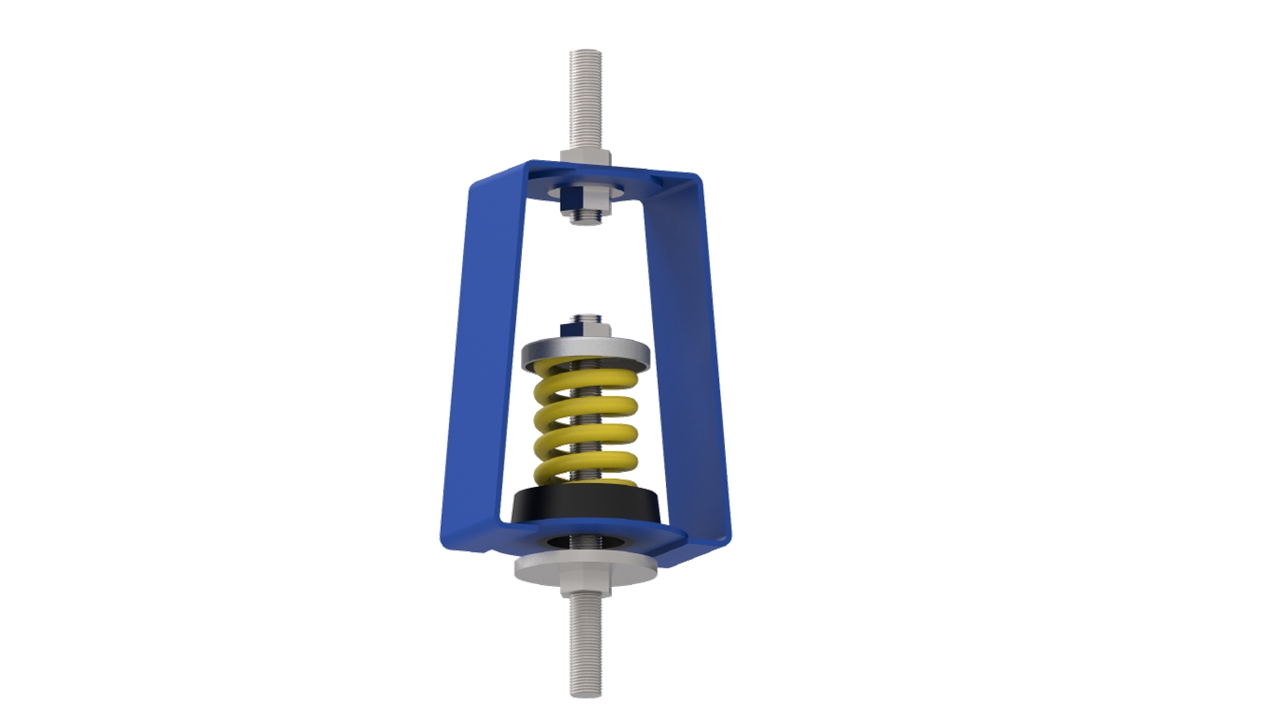

SSH-A2 SEISMIC SPRING HANGER
아이콘Product Usage
- Duct, Pipe, Suspended mount system
- Equipment to occur the vibration such as AHU eqyipment, Air blows etc
리스트보기
아이콘Product Features
- Hanger rod can move 30 degree as shown.
- The washer consisted of neoprene and steel is installed under hanger box to restrain vertical displacement when earthquake occurs. (Vertical limit stop)
- Heavy-duty design withstand more than 1.0G of accelerated force in load direction.

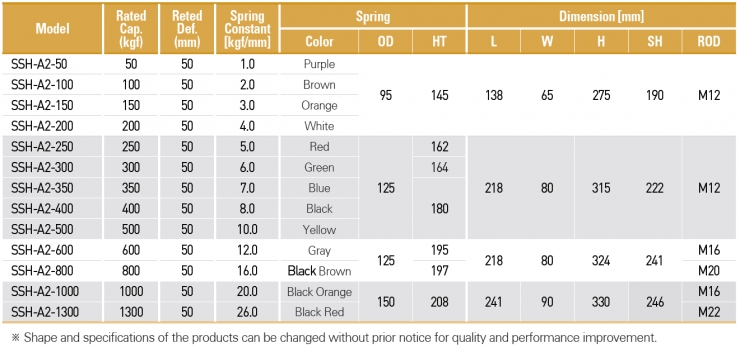

아이콘Product Specification
