piping
anti-vibration
products home라인Product라인Soundproof and Vibrationproof products 라인

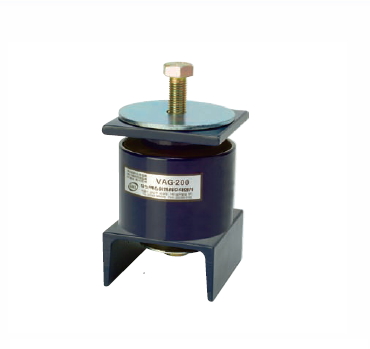

VAG ANCHOR ANCHOR&GUIDE
아이콘Product Usage
-Anti-vibration for riser
-Anti-vibration for other horizontal piping
리스트보기
아이콘Product Features
-Prevents noise and vibration caused by stress generated by
expansion and shrinkage of vertical pipe.
-Suitable for isolating structure-borne sound in the
horizontal-vertical direction by fluid pressure.

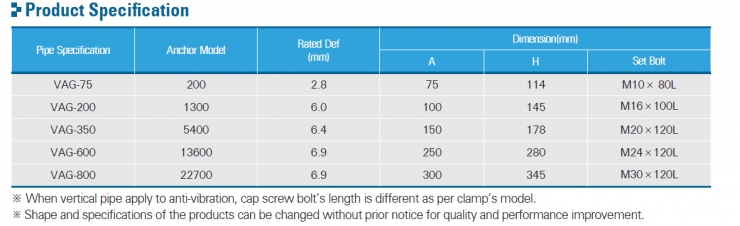

아이콘Product Specification



*Product Configuration
-Steel Plate
-Neoprene
-Bolt and Nut
-Panel
