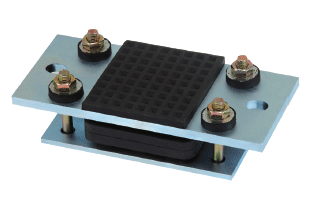

PAVS-U(VIBRATION SPRING MOUNT-U-BOLT TYPE)
아이콘Product Usage
-Vibration-proof for horizontal pipes with air
conditioning equipment
리스트보기
아이콘Product Features
-A combined shape of VSP spring pad and reinforced
steel plate
-Robust acid resistance, weather resistance and oil
resistance to indoor/outdoor and surrounding
environmental changes, and a model resistant to
isovolumetric change up to 5.5mm when applied
with load
-Easy for site constructability & installation by
processing a U-bolt slot hole

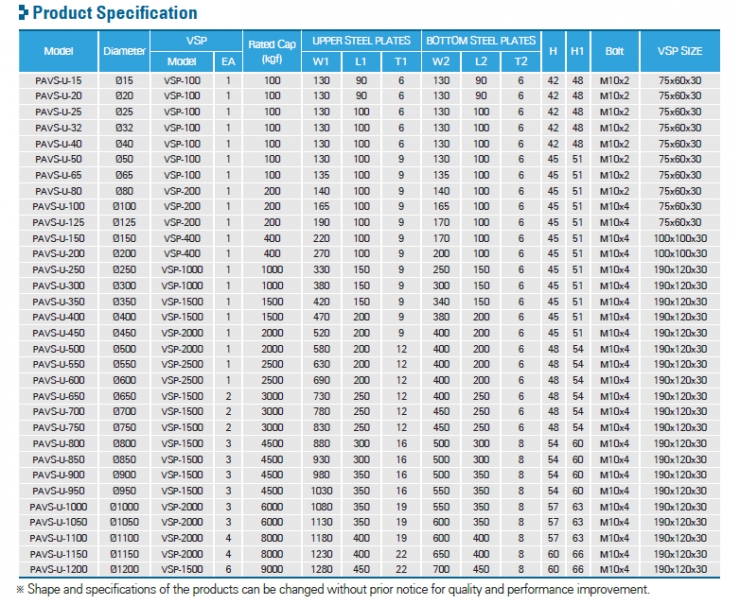

아이콘Product Specification
