anti-vibration
hange home라인Product라인Soundproof and Vibrationproof products 라인

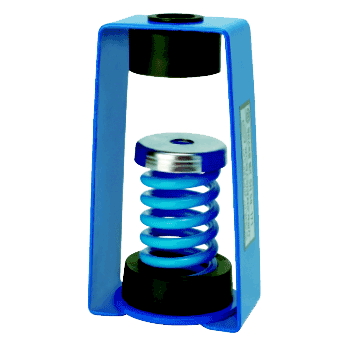

㉿SH SPRING HANGER
아이콘Product Usage
-Anti-vibration of duct and horizontal pipe laying
-Anti-vibration of vibrator such as AHU equipment, air blows
etc
-Ceiling isolation system for anechoic room, broad casting
station etc
리스트보기
아이콘Product Features
-Consisting of Neoprene and spring.
-Preventing equipment vibration.
- Isolating stress transmission from pipe and duct to structure.
- As insert Neoprene pad between steel housings, It can
isolate vibration and also structure-borne noise as well.
- With proper hole size at the bottom of hanger box, Hanger
load can move 30 degree at any direction.
- Using coil spring with rated deflection of 25mm, the natural
Frequency of systems can be maintained between 3~5Hz.

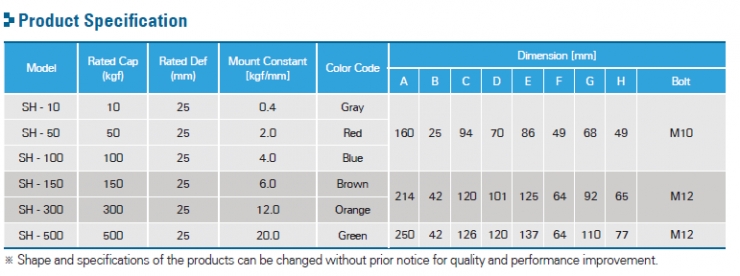

아이콘Product Specification

-Hanger box
-Neoprene mount
-Spring cap
-coil spring
-Lower part spring Neoprene cap​
