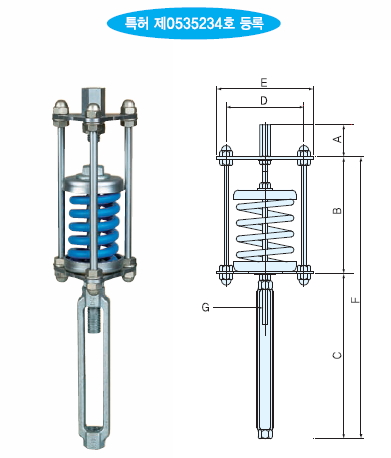

SCH SPRING HANGER
아이콘Product Usage
-Anti-vibration for duct or pipe in clean room of
semi-conductor factory
-Equipment isolator of Mechanical room or AHU
room.
-Other special purpose (rust-proof etc)
리스트보기
아이콘Product Features
-Anti-vibration isolator for duct or pipes in clean
room.
-Apply chromium coated plate for duct or pipes in
C/R line.
-The spring keeps in vertical shape during
operation due to fixing of upper and lower spring
cap.
-Integral type isolator, easy installation due to
pre-compressed assembly.

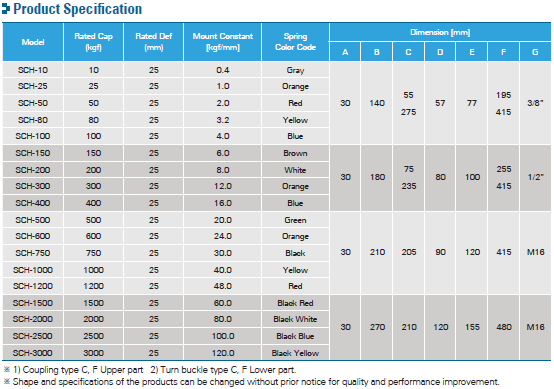

아이콘Product Specification



-Turnbuckle
-Hanger housing
-Upper and lower spring cap
-Coil spring
-Spring washer
-Coupler
