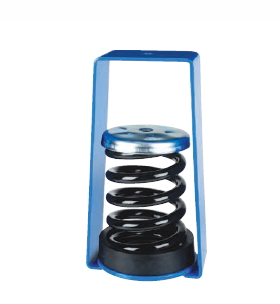

VCSH SPRING HANGER(50MM)
아이콘Product Usage
-Anti-vibration of equipment installed beneath the
ceiling of Mechanical room, AHU room
-Floating ceiling system such as anechoic room,
broad casting station etc
-Anti-vibration of pipe and duct in semi-conduct
factory
리스트보기
아이콘Product Features
-Consisting of Neoprene and Spring
-Mainly used for anti-vibration of equipment
installed beneath the ceiling.
-Need installation between minimum 3m to 15m
at vibration sensitive area.
-Mainly used for anti-vibration at the vibration
sensitive area such as pipe and duct in
semi-conduct factory because of expectation for
high efficiency of anti-vibration

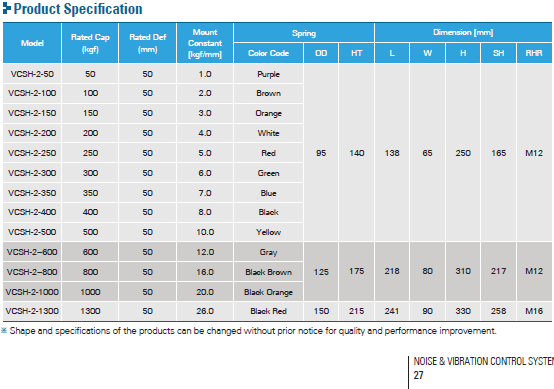

아이콘Product Specification
-Hanger box
-Spring cap
-Coil spring
-Lower part Neoprene spring cap
