anti-vibration
hange home라인Product라인Soundproof and Vibrationproof products 라인

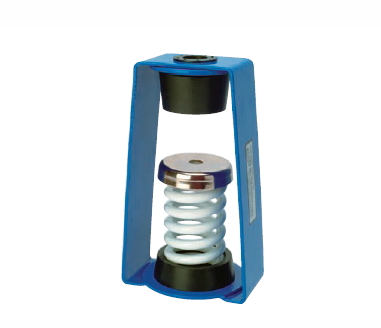

VNSH NEOPRENE SPRING HANGER
아이콘Product Usage
-Anti-vibration of duct and horizontal pipe
-Anti-vibration of vibrator such as Ahu equipment,
air blows etc
-Ceiling isolation system for anechoic room, broad
casting station etc
리스트보기
아이콘Product Features
-Consisting of Neoprene and spring.
-Isolating equipment vibration.
-Isolating stress transmission from pipe and duct
to structure.
-As insert Neoprene Pad between steel housings,
It can isolate vibration and also structure-bone
noise as well.
-With proper enough hole size at the bottom of
hanger box, hanger load bar can move 30 degree
at any direction.

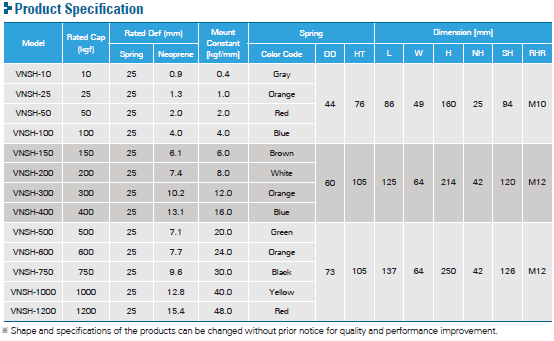

아이콘Product Specification
-Hanger box
-Upper part Neoprene
-Spring cap
-Coil spring
-Lower part Neoprene spring cap
