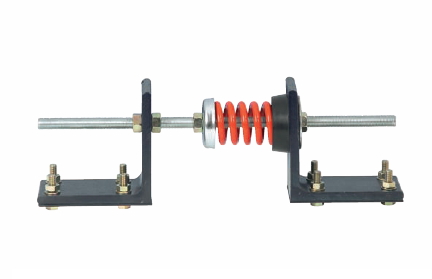

HTL HORIZONTAL THRUST LIMITED(25mm)
아이콘Product Usage
-Canvas Connection part of Fan
-Prevents thrust force of AHU
-Prevents thrust force of blower
리스트보기
아이콘Product Features
-Isolate thrust force against fan air flow.
-Shall be installed beside the center of air-flow
direction.
-Used-in the case of the thrust force to be more
than 5% of the weight of equipment.

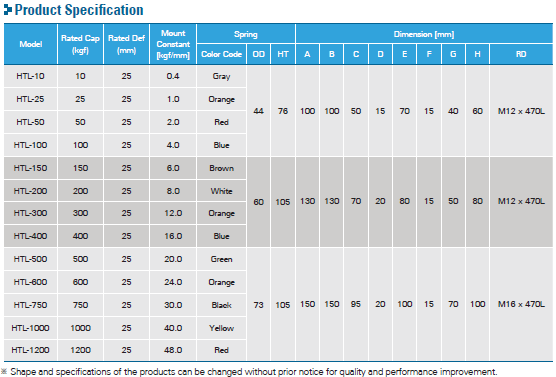

아이콘Product Specification
-Nut, Washer, Bolt
-Spring cap and Neoprene cap
-Coil spring
-Steel plate
