spring mount home라인Product라인Soundproof and Vibrationproof products 라인

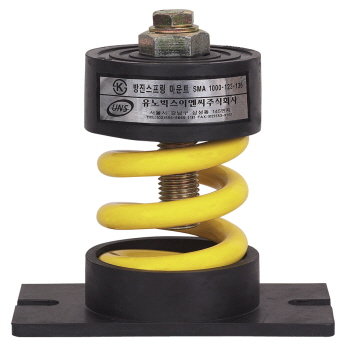

㉿SMA SPRING MOUNT (KS B 1563)
아이콘Product Usage
-AHU equipment (Horizontal type, vertical type, complex type, internal type)
-Air blows(sirocco, air foil, turbo etc)
-Generator, pump
-Anti-vibration for vibrators
리스트보기
아이콘Product Features
-Housing type anti-vibration mount.
-Manufactured in order to treat all direction of vibration, especially horizontal thrust force can be protected by right and left sponge when during operation.
-Neoprene Pad is attached to isolate transmission of surging effect.
-One side of Neoprene pad is cut for drain to prevent product corrosion.

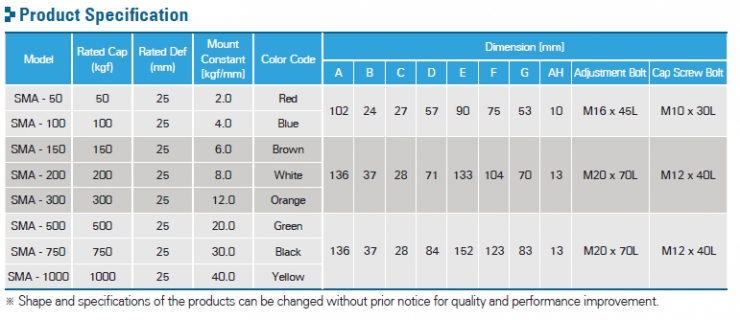

아이콘Product Specification

-Fixing bolt and nuts

-Upper part housing

-Coil spring

-Lower part housing

-Neoprene Pad
