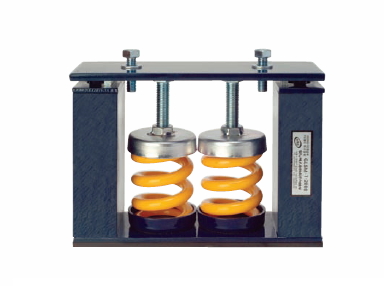

GLSM LIMITED SPRING MOUNT (Rated deflection 25mm)
아이콘Product Usage
-Refrigerator, cooling tower
-Generator
-Anti-vibration of heavy weight vibrator etc
-Anti-vibration for vibrator without strut
리스트보기
아이콘Product Features
-Limited type anti-vibration mount.
-This product can be used when the operation weight of
equipment shall be increased and different from stop weight.
-Adjusting optimized height level.
-Easy to adjust level by control bolt.
-Attached Neoprene Pad is cut for drain to prevent product
corrosion.

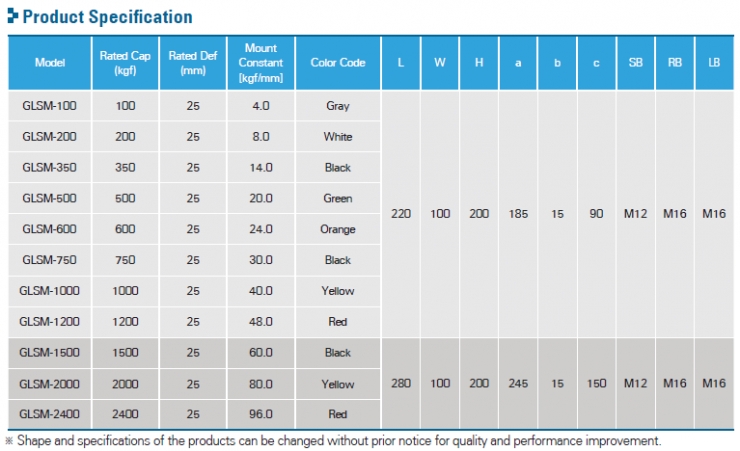

아이콘Product Specification

-Upper part steel plate
-Temporary strut
-Control bolt
-Upper part spring cap
-Coil spring
-Lower part spring cap
-Lower part steel plate
-Neoprene pad​
