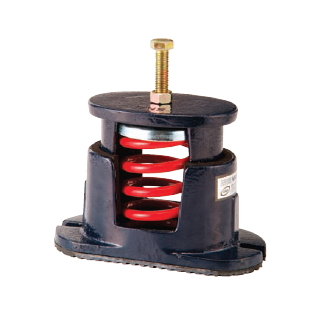

VHS HOUSING SPRING(Rated deflection 50mm)
아이콘Product Usage
-AHU equipment (horizontal type, vertical type, complex
type, internal type)
-Air blows (sirocco, air foil, turbo etc)
-Generator, pump
-Anti-vibration for other vibrators
리스트보기
아이콘Product Features
-Housing type anti-vibration mount.
-Manufactured in order to treat all directions of vibration,
especially horizontal thrust force can be protected by
right and left sponge when running equipment.
-Neoprene Pad is attached to isolate transmission of
surging effect.
-One side of Neoprene pad is cut for drain to prevent
product corrosion.

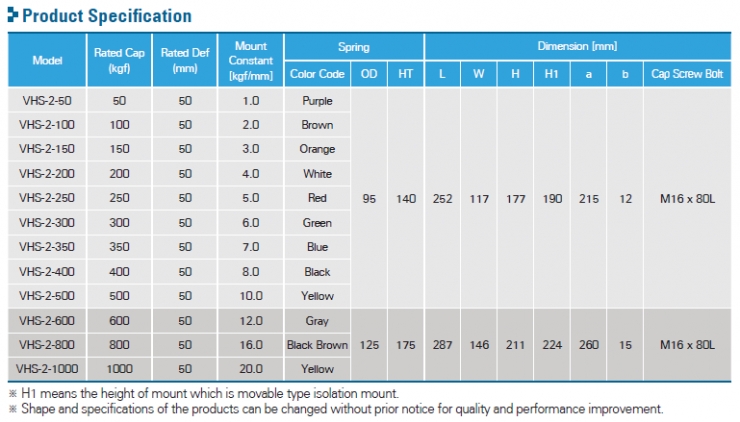

아이콘Product Specification



-Fixing bolt and nuts
-Upper part housing
-Spring cap
-Coil spring
-Lower part housing
-Neoprene Pad​



​
