VOS - OPEN SPRING (Rated deflection 25mm)
아이콘Product Usage
-Pump(Single stage volute, Multi stage volute, Double suction,
Turbine)
-Air blows
-anti-vibration for any vibrator with less horizontal force
리스트보기
아이콘Product Features
-Open type anti-vibration mount.
-Developed high efficiency of anti-vibration.
-Optimizing diameter and working height for stability of right and
left, top and bottom.
-Easy to adjust level by control bolt.
-Spring deflection can be visually checked with ease.

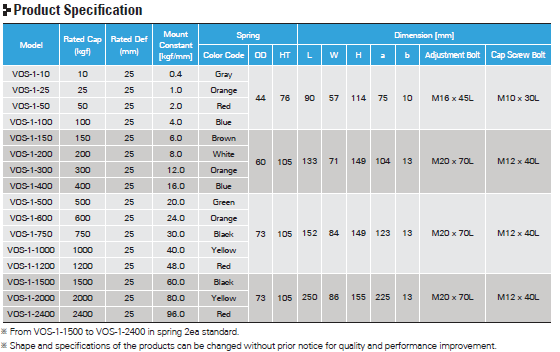

아이콘Product Specification

​-Fixing bolt
-Height control bolt
-Upper part spring cap
-Coil spring
-Bottom spring cap​

​
