spring mount home라인Product라인Soundproof and Vibrationproof products 라인
LSM LIMITED SPRING(100mm)
아이콘Product Usage
• Refrigerator, Cooling tower
• Generator
• Anti-vibration of heavy weight vibrator etc
• Anti-vibration for vibrator without strut
리스트보기
아이콘Product Features
•limited type anti-vibration mount.
• This product can be used when the operation weight of equipment shall be increased and different from stop weight.
• Adjusting optimized height level.
• Easy to adjust level by control bolt.
• Attached Neoprene Pad in order to avoid structure borne-noise transmission.
• One side of Neoprene Pad is cut for drain to prevent product corrosion.

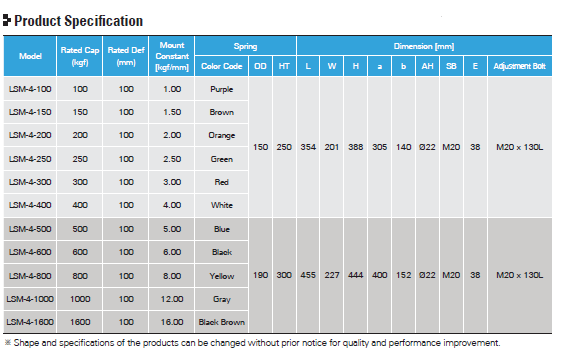

아이콘Product Specification

• Upper part steel plate
• Temporary strut
• Control bolt
• Upper part spring cap
• Coil spring
• Lower part spring cap
• Lower part steel plate
• Neoprene Pad​
